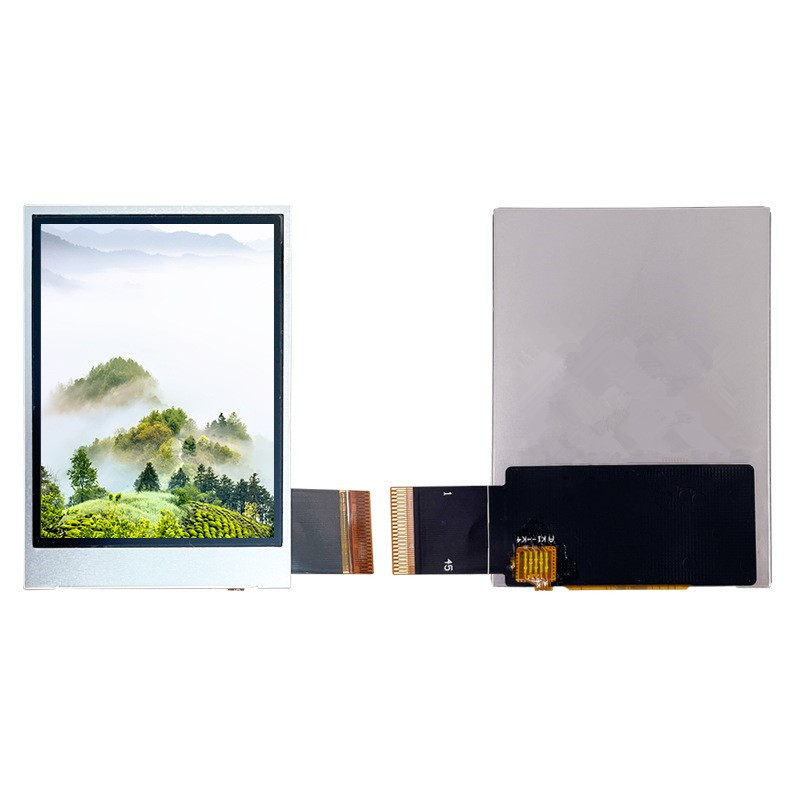

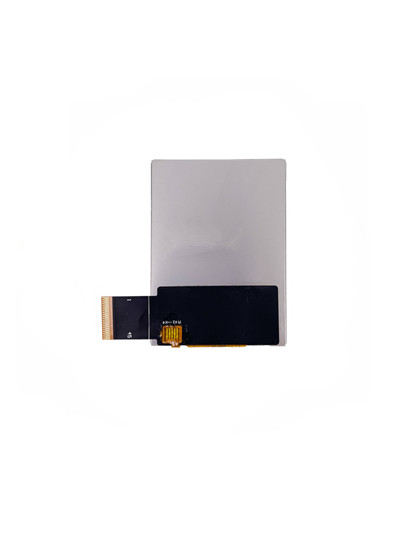

• The features of LCD are as follows
  • * Display Size:               3.5”
  • * Display Mode:                  TFT Transflective/Normally White
  • * Controller/driver IC:          ST7511
  • * Display Resolution:       240RGB*320
  • * Display Interface:             8-bit 8080 Interface
  • * Viewing Direction:          Full view
  • * Module Outline:               61.3*82.7*2.7mm
  • * Sample NO: T035240320-A1WMN-001

1. General Description

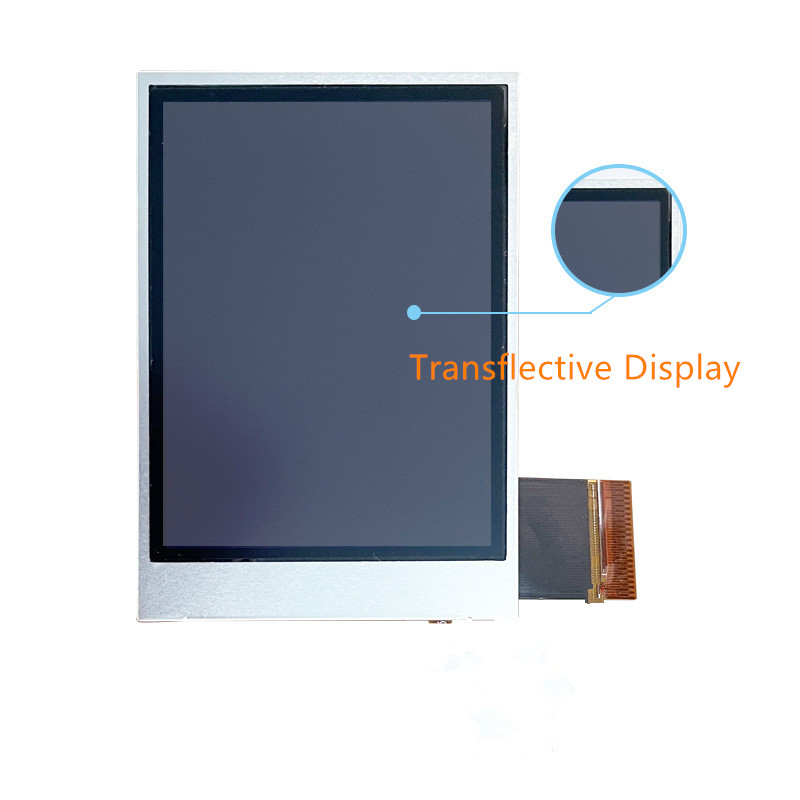

    The specification is a transflective type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Ics and a backlight unit.With sunlight visual function.

2. Module Parameter

Features

Details

Unit

Display Size(Diagonal)

3.5”


Display Mode

Transflective/ Normally White/ VA


Resolution

240x320

Pixels

View Direction

Full VIEW

Best Image

Module Outline

61.3(H) x82.7(V) x 2.7(T)  (Note1 )

mm

Active Area

53.28 (H) x71.04(V)

mm

Pixel Pitch

222(H) x222(V)

um

Pixel Arrangement

Mono Stripe


Interface

8-bit 8080 Interface


Driver IC

ST7511

-

With or Without Touch Panel

Without


Operating Temperature

-2070

ºC

Storage Temperature

-3080

ºC

Weight

30

g

Note 1: Exclusive hooks, posts, FFC/FPC tail etc.


3. Absolute Maximum Ratings
 VSS=0V, Ta=25ºC

Item

Symbol

Min.

Max.

Unit

Supply Voltage

VDD

2.7

5.5

V

Storage temperature

Tstg

-30

+80

ºC

Operating temperature

Top

-20

+70

ºC

Note 1:If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2:The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.

 4. DC Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Supply Voltage

VDD

3.0

3.3

5.0

V

Logic Low input voltage

VIL

GND

-

0.2*VDD

V

Logic High input voltage

VIH

0.8*VDD

-

VDD

V

Logic Low output voltage

VOL

GND

-

0.2*VDD

V

Logic High output voltage

VOH

0.8*VDD

-

VDD

V

Current Consumption
All White

Logic

ICC+IIN

-

20

50

mA

Analog


 5. Backlight Characteristic

5.1.   Backlight Characteristic

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Forward Voltage

VF

Ta=25ºC,IF=20mA/LED

-

25.6

-

V

Forward Current

IF

Ta=25ºC, VF=3.2V/LED

-

20

-

mA

Power dissipation

PD

-

-

512

-

mW

Uniformity

Avg

-

75

80

-

%

LED working life(25℃)

-


-

30,000

-

Hrs

Drive method

Constant current

LEDConfiguration

8 White LEDsin series

Note1LED life time defined as follows: The final brightness is at 50% of original brightness.
The environmental conducted under ambient air flow, at Ta=25±2ºC,60%RH±5%, IF=20mA
